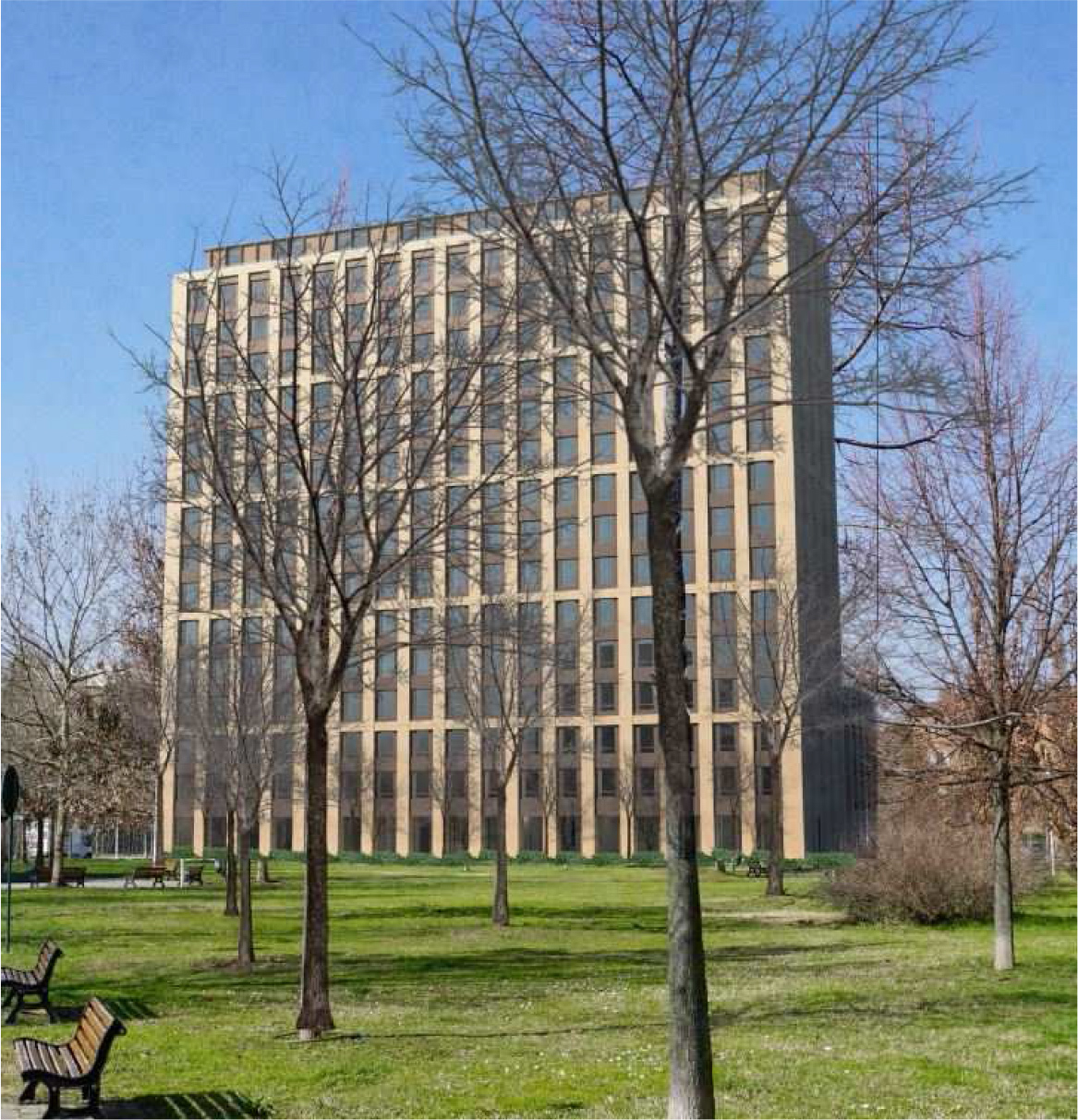

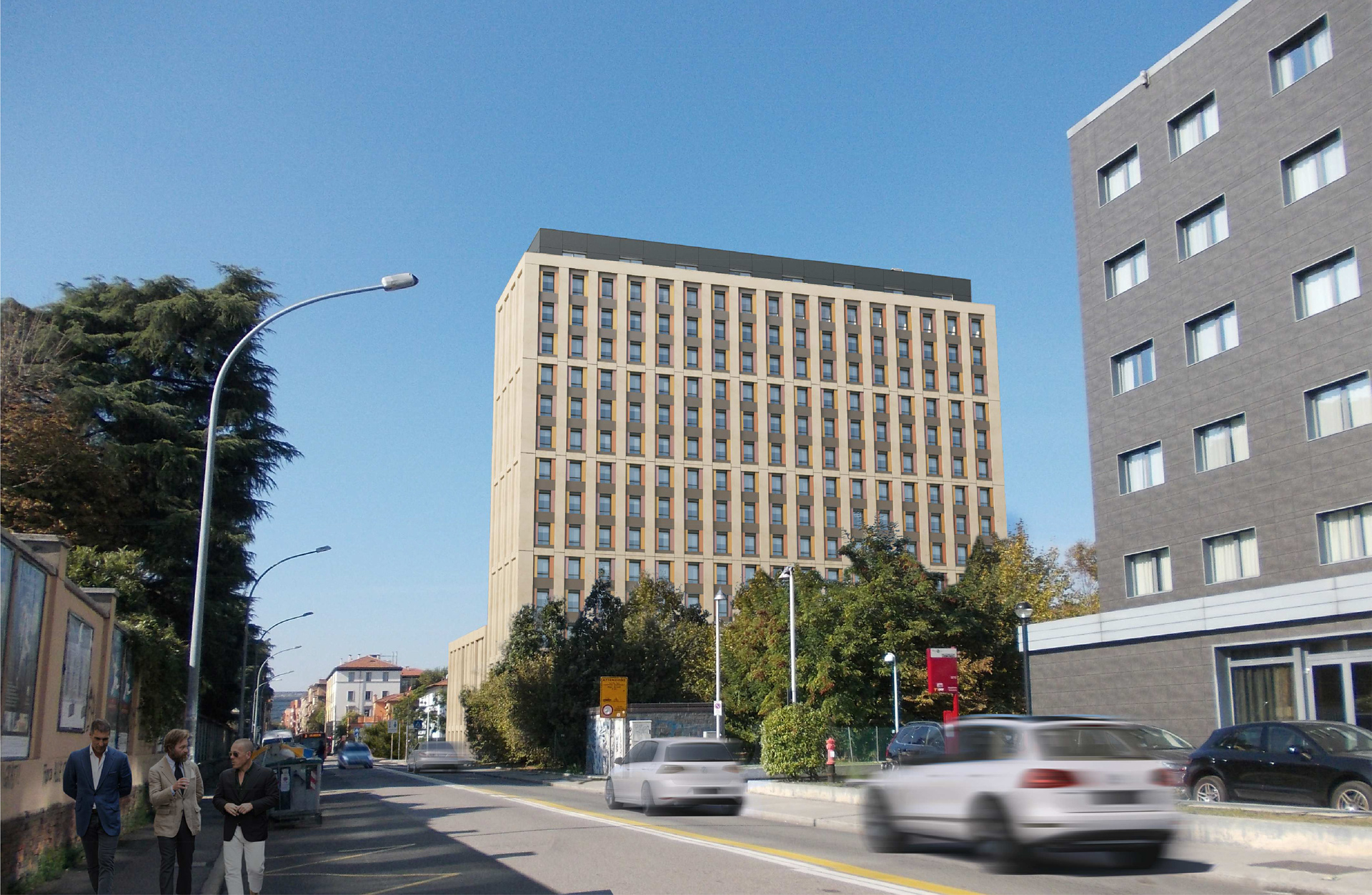

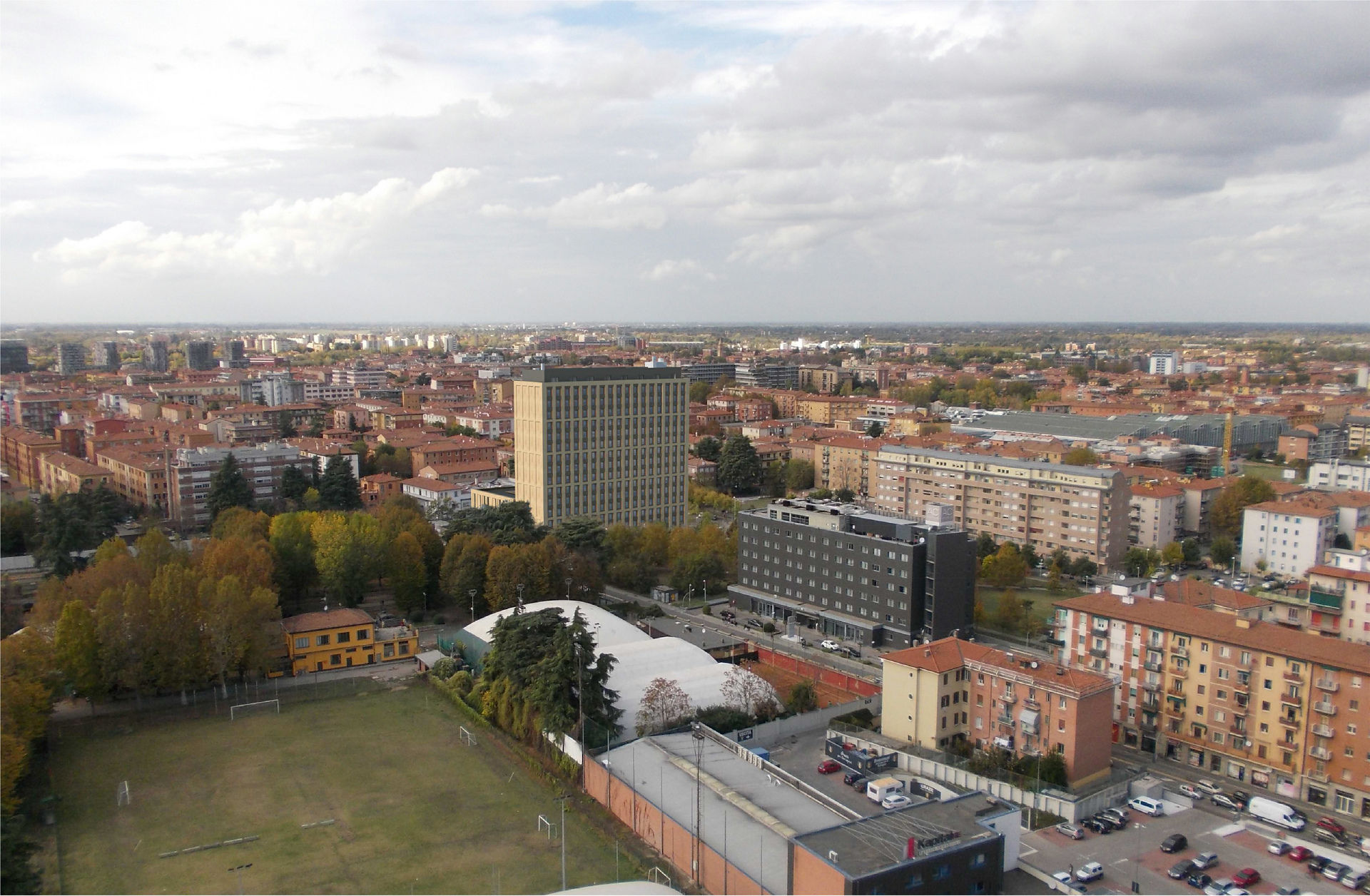

Via Serlio Student Hotel

Bologna - 2018 - 2022

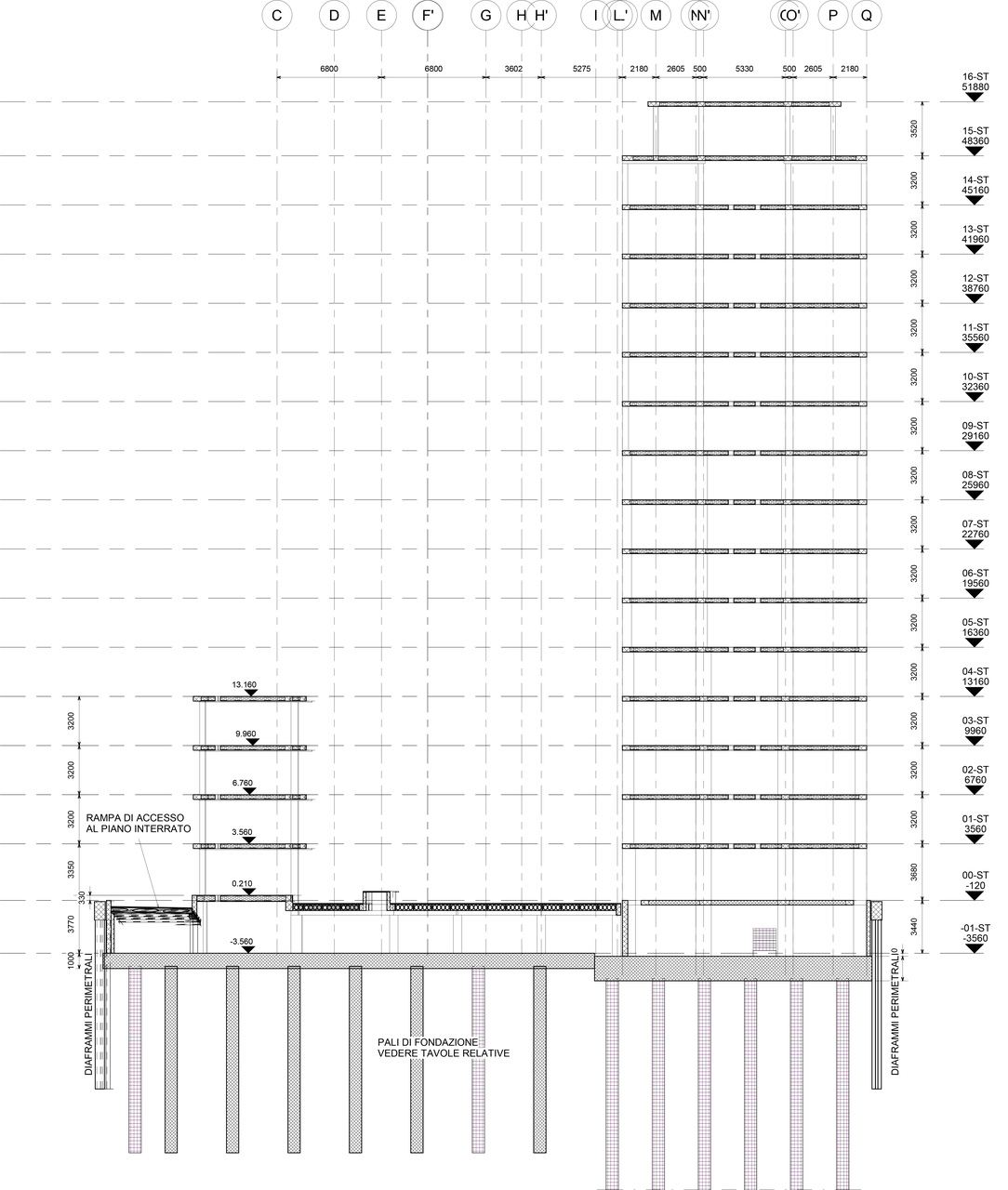

The design is composed by two separate structures (high structure and low structure).

High structure is a 52m height structure with a 16m x 53m rectangular plan with main North-South axes. Low structure, adjacent to the West part of the high structure is composed by a30m x 60m  underground floor designated as garage.

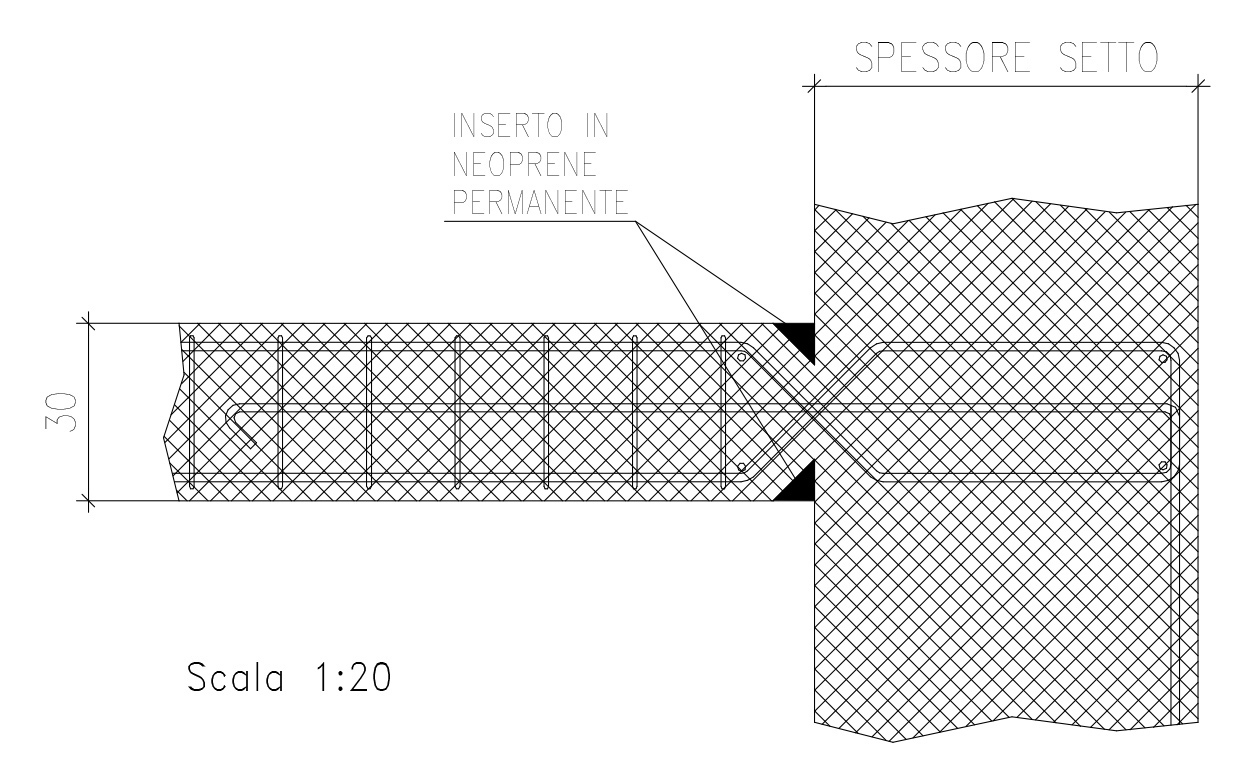

Both structures are made up by cast in situ concrete slabs with bottom reinforced precast sheets with tick beams. Concrete columns and cores (with cast in situ concrete stairs) built up main vertical structures. The underground floor level is made by “Spiroll” precast slabs and precast beams, supported by cast in situ columns.

Technical Sheet
Performed service
Tender, preliminar and final structural design
Client
Open Project
Year
2018 - 2022
Dimensional parameters

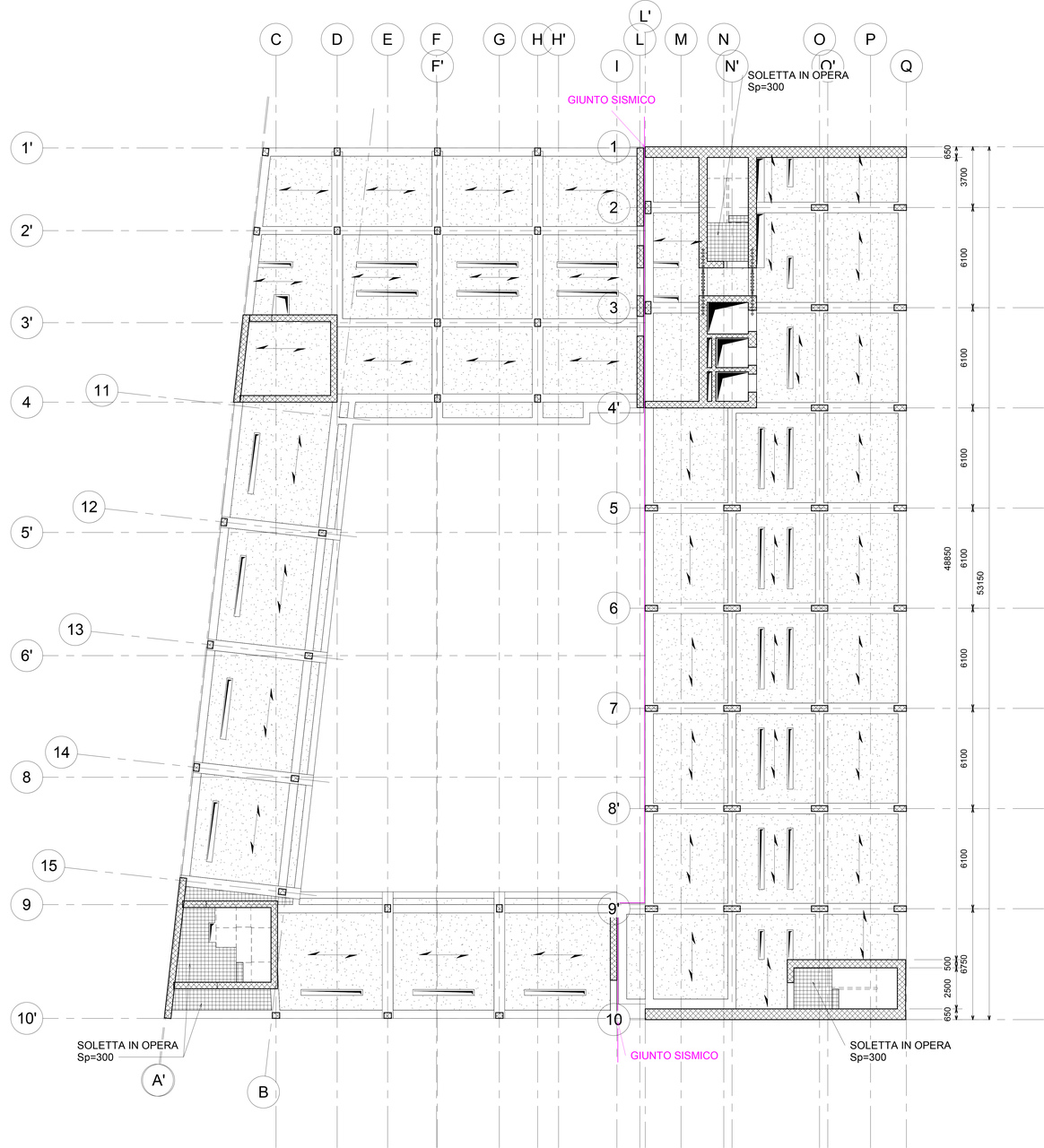

High Structure plan 16m x 53m, Low Structure plan 30m x 60m
Surface
848smq covered (High Structure), 1.600smq covered (Low Structure)
Structural work cost
6.309.000 €

Photogallery
