New Cairo Stadium

New Cairo - 2019 - 2022

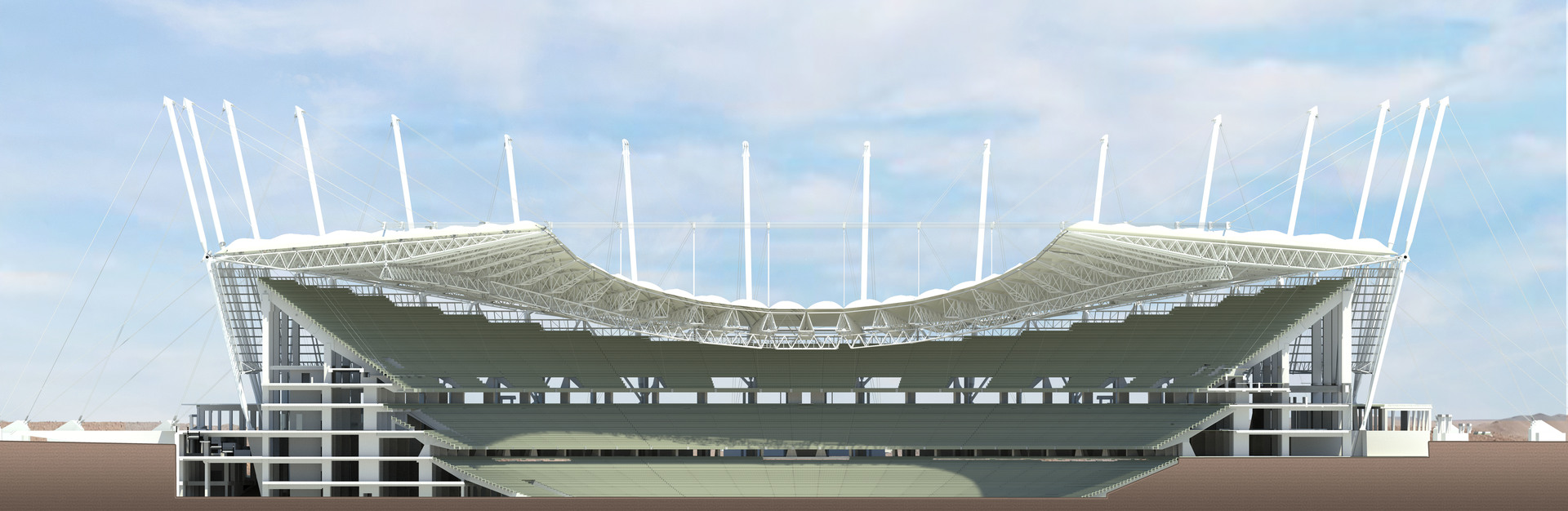

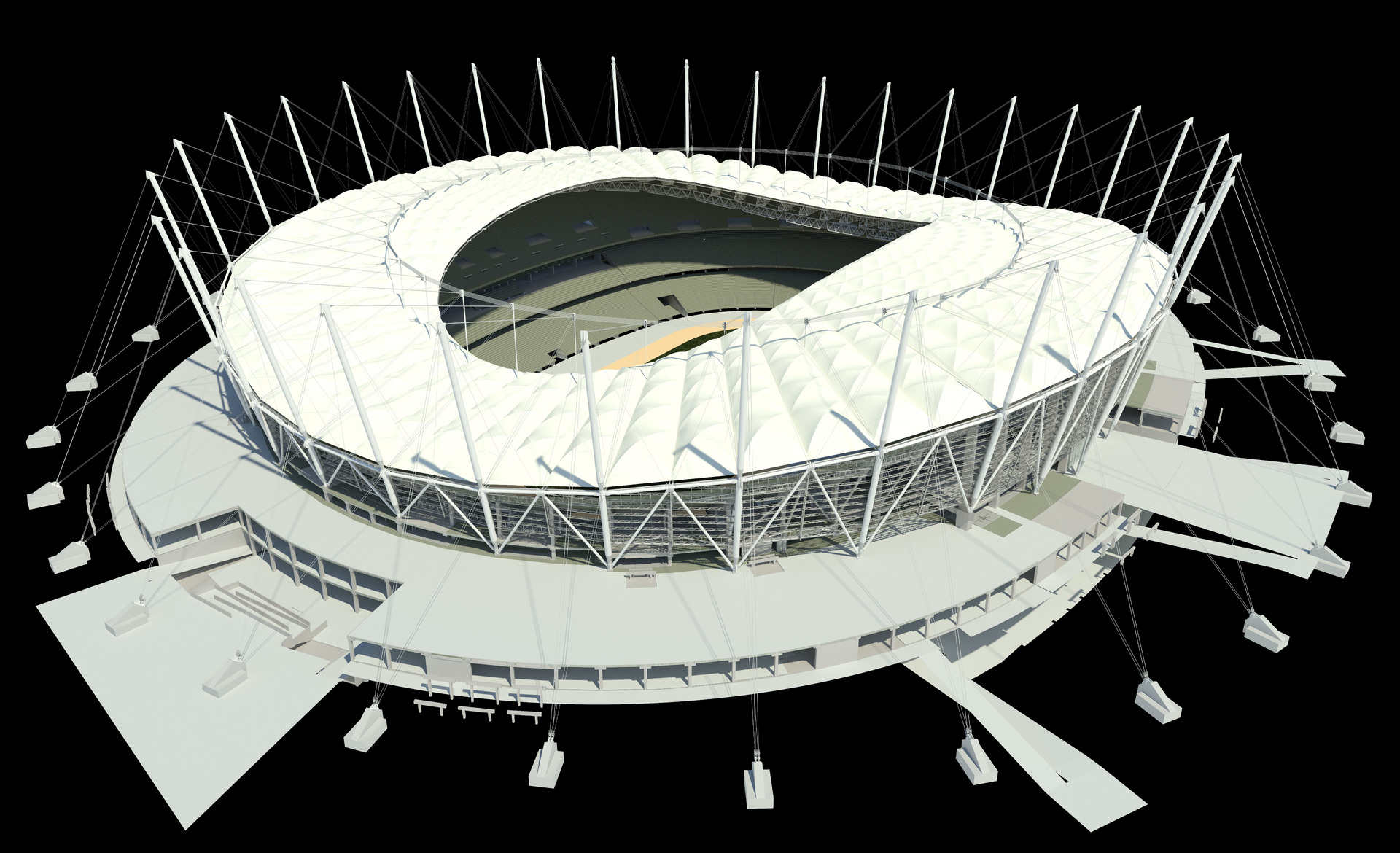

New Cairo stadium cover roof is a light spoke wheel structure, that is the most suitable structural system for big span design.

Following architectural design, roof structural system is composed by:

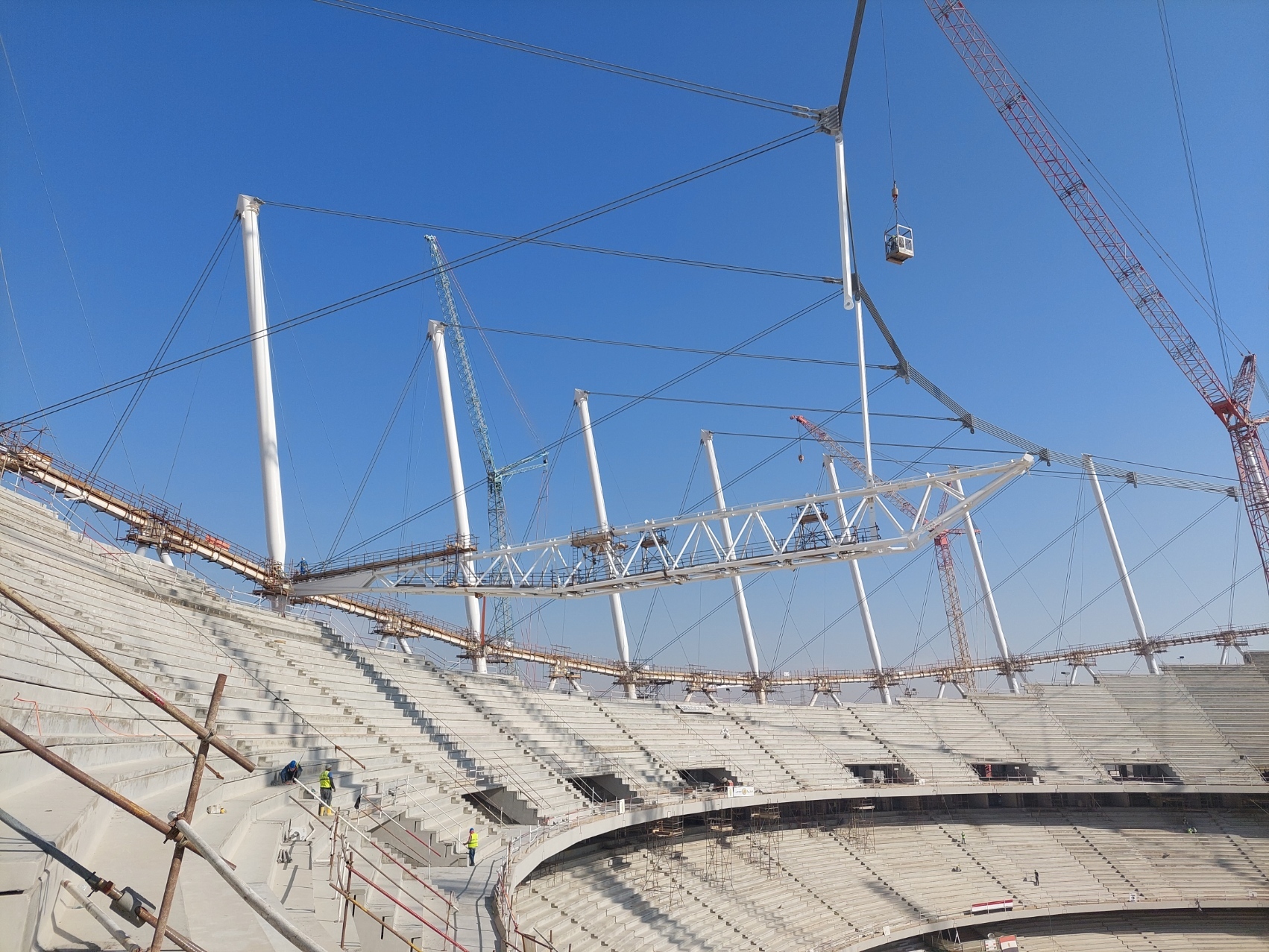

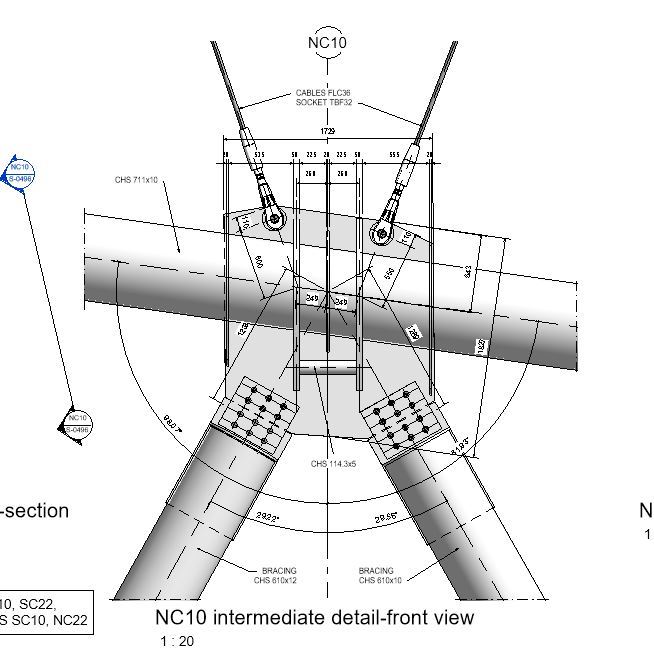

Principal tridimensional tensile structure composed by:

  • An internal tension ring;
  • 32 internal radial bearing cables;
  • 32 internal radial stabilizing cables;
  • 32 hanging details with variable length;
  • 32 inclined pylon.


Secondary structural system composed by:

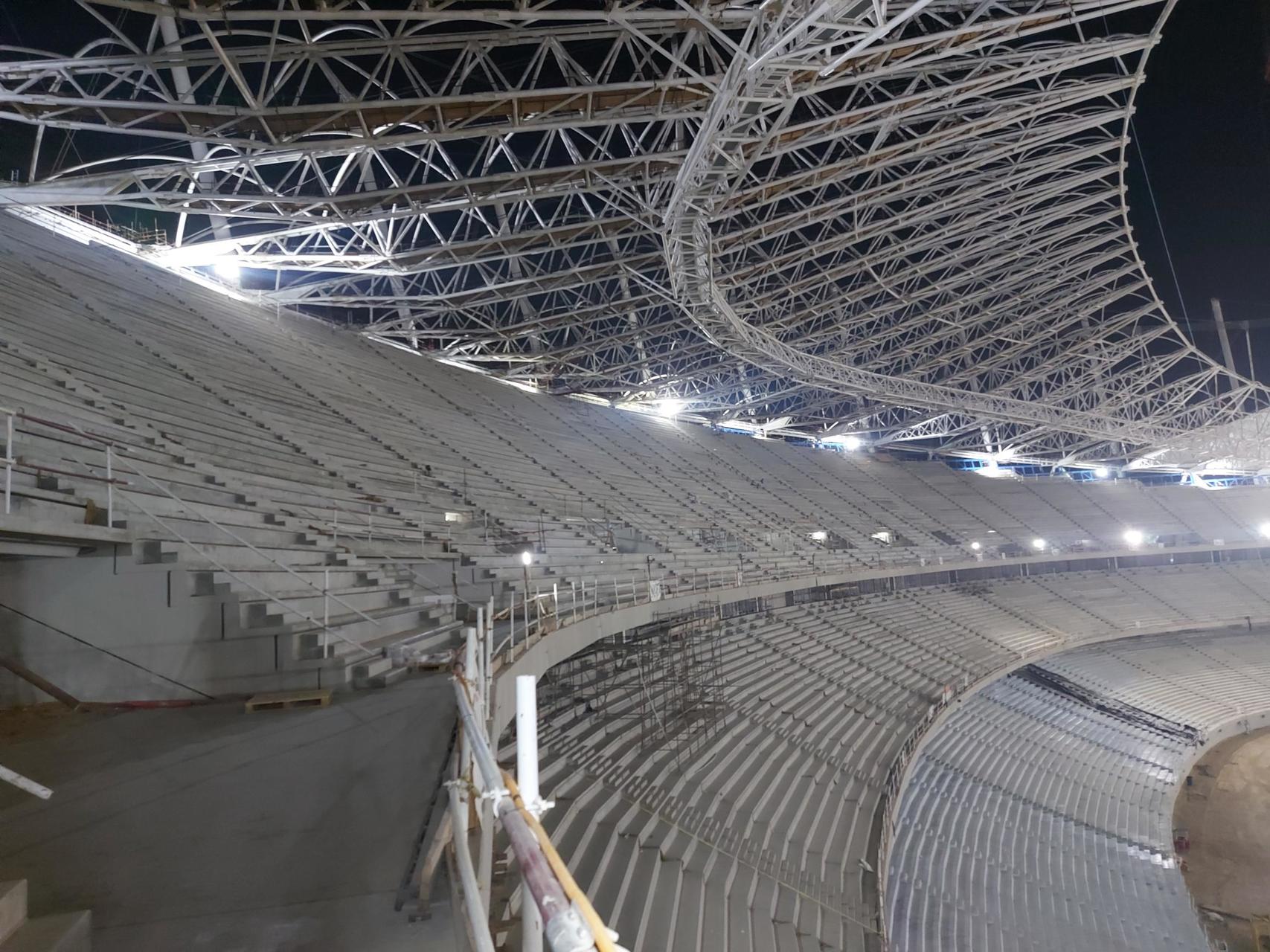

  • 64 secondary spatial trusses that follow roof cover wave shape;
  • 64 membrane cover panels.
Technical Sheet
Performed service
Tender, preliminary and final structural design and construction site support
Client
ORASCOM
Year
2019 - 2022
Dimensional parameters
93.000 seats
Surface
128.000smq
Structural work cost
270.000.000 €
