Agia Sophia Stadium

Athens - 2017 - 2021

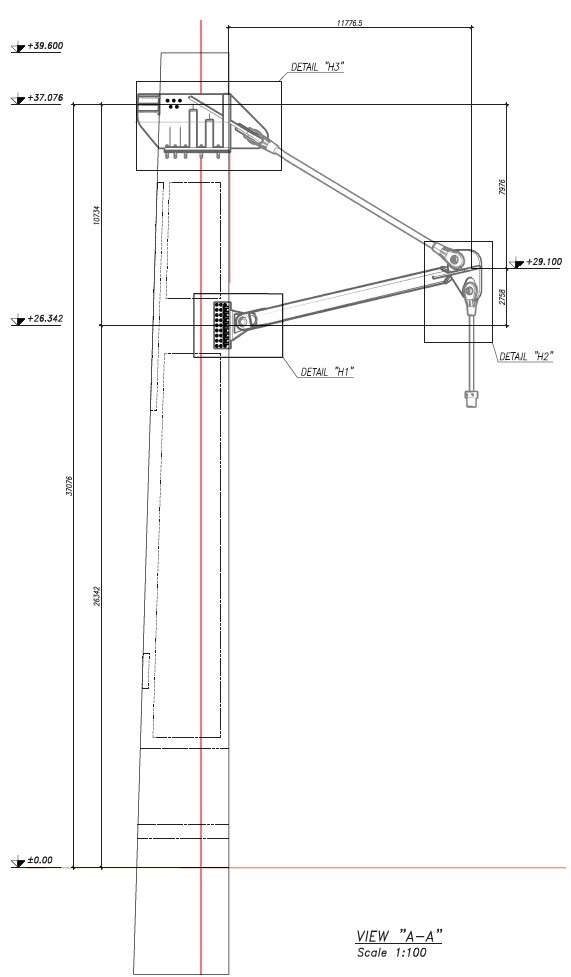

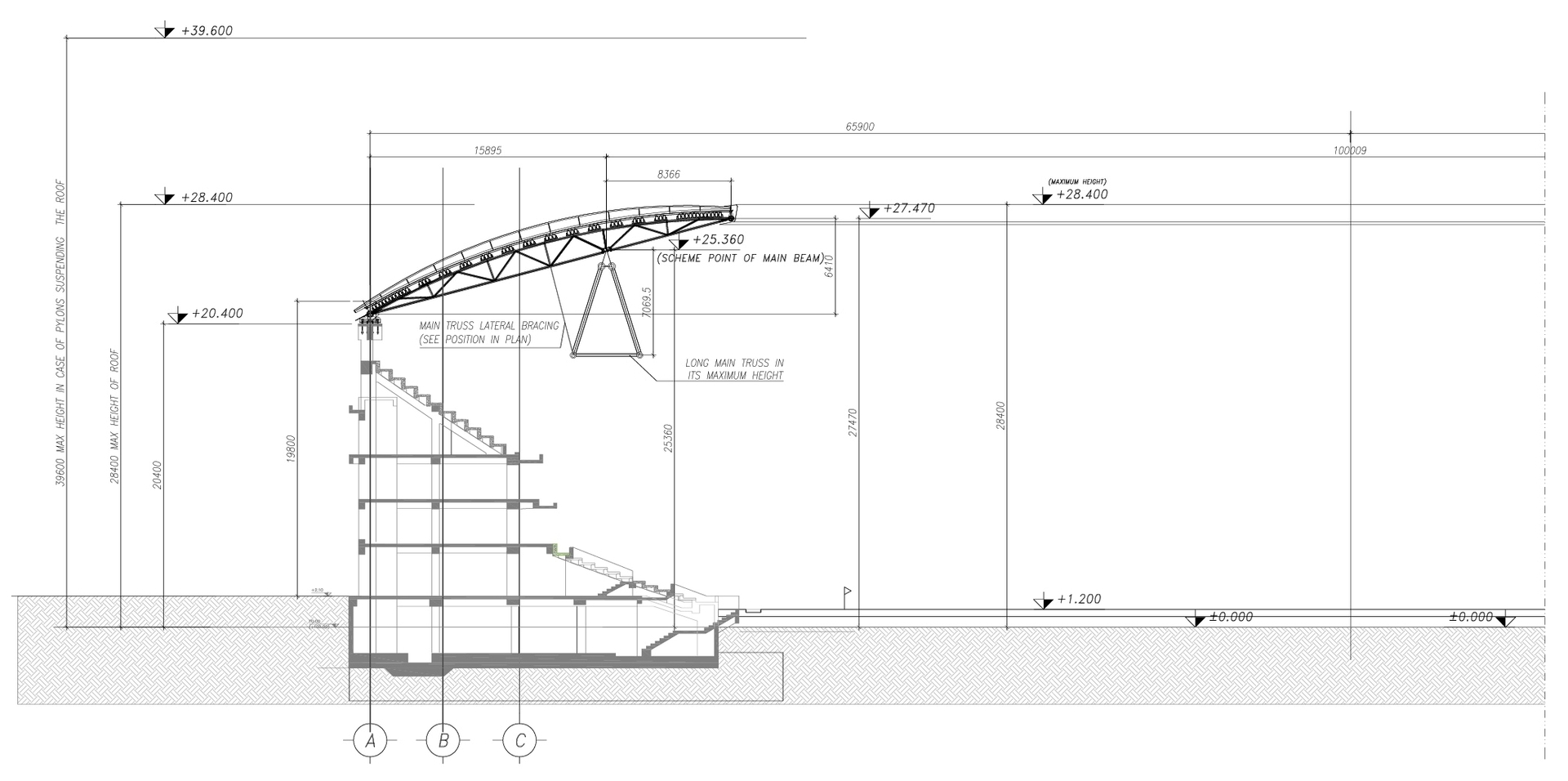

New AEK Stadium Roof cover main structure is made by 4 truss beams, parallel to the ground and suspended at their own end by 4 concrete pylons.

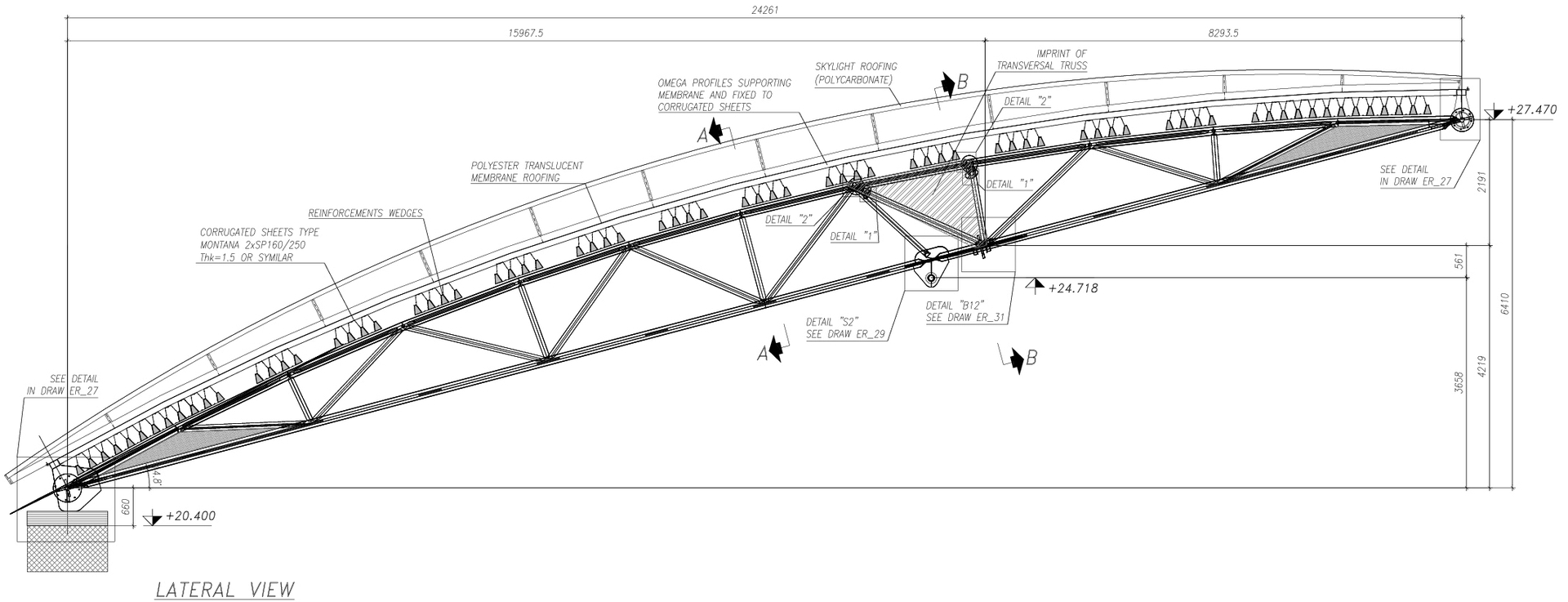

These 4 main trusses, that have a triangular 6m height cross section, support secondary beams with triangular cross sections and intermediate span of 10.2m, and corrugated sheet cover.

Technical Sheet
Performed service
Tender, preliminar and final structural design of steel roof
Client
AEK Athens football club
Year
2017 - 2021
Dimensional parameters
32.000 Seats
Surface
12.000smq covered area
Structural work cost
12.000.000 €
